Mail and OCS Server Publishing using TMG on Forefront Unified Access Gateway (UAG) 2010

October 26, 2010 2 comments

In a recent post I outlined some of the basic differences between Forefront Threat Management Gateway (TMG) 2010 and Unified Access Gateway (UAG) 2010. Although I indicated that UAG includes TMG under the covers, TMG is intended to provide protection for the UAG host only. It cannot be used to provide firewall, outbound proxy, or VPN services. There are specific instances when leveraging the underlying TMG services is allowed and supported. As the UAG Support Boundaries indicate, you can use TMG on UAG for Exchange mail server publishing (SMTP/SMPTS, POP3/POP3S, and IMAP/IMAPS) and Office Communications Server (OCS) SIP traffic publishing (Communicator Web Access (CWA) should be published using UAG). This means that if you are planning to publish Exchange and OCS, you can accomplish this using UAG alone. You are not required to deploy TMG or another firewall to provide secure access to mail server-to-server communication or OCS SIP traffic.

TMG and IANA Unallocated Reserved Networks

October 22, 2010 Comments off

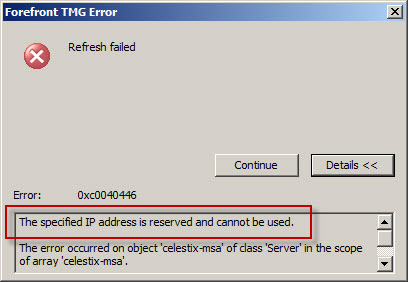

Recently the engineers at Celestix UK brought an interesting issue to my attention. They were working with a customer to configure TMG to protect an internal network using the address space When attempting to assign an IP address from this network to the Internal network interface of the TMG firewall they would receive the following error:

As it turns out, the network is IANA reserved and not allocated (which is different than reserved allocated networks like RFC 1918 private address ranges, APIPA, loopback, multicast, etc.). This was news to me! As we discovered, you cannot configure any network interface on the TMG firewall using an address from any unallocated reserved network. Interestingly enough, my good friend Ed Horley pointed out there are many more IANA reserved networks that I was completely unaware of. You can find more information about those networks here.

If you have to configure a TMG firewall to protect an unallocated reserved network, your only options are to readdress the network using an allocated address range or place a router in front of TMG.

How to Determine TMG Version

October 11, 2010 Comments off

Recently Tarek Majdalani, one of my fellow Forefront Edge Security MVPs, published an informative article detailing several ways to determine which version of TMG is installed. One additional method you can use to determine the version of TMG you are running is by using COM. The VBScript code looks like this:

Option Explicit

Dim Root, Server

Set Root = CreateObject("FPC.Root")
Set Server = Root.GetContainingServer

WScript.Echo Server.ProductVersion

Set Server = Nothing
Set Root = Nothing

Copy the code above and save it in a file with a .vbs extension, or download the script file here.

You can execute the script from the command line using cscript.exe using the following syntax:

cscript.exe <path_to_script_file>

The output of the command includes the TMG version and build number information.

You can also double-click the script file in the GUI and a Windows message box will appear with the TMG version and build number information.

What are the Differences between TMG and UAG?

October 10, 2010 7 comments

I am frequently asked “What are the differences between TMG and UAG?” and “Which one should I deploy?” In this post I will provide some background information that will hopefully answer those questions for you. This is not intended to be a comprehensive side-by-side feature comparison. It is only meant to provide a high-level overview of the basic differences between TMG and UAG.

Let’s begin by examining the features of each product:

  • Microsoft Forefront Threat Management Gateway (TMG) 2010 is an integrated edge security gateway. It is a Common Criteria certified (EAL4+) enterprise-class application layer firewall that includes support for proxy services (forward and reverse proxy), content caching, and VPN (both remote access and site-to-site). It can be deployed in all of these roles, or any subset of them.
  • Microsoft Forefront Unified Access Gateway (UAG) 2010 is a dedicated remote access gateway. It is Common Criteria certified (EAL2+) and provides browser-based remote access to published applications via an SSL VPN portal. It includes limited support for traditional client access VPN with Secure Socket Tunneling Protocol (SSTP) and Network Connector (a proprietary UAG component that provides network-level access). UAG can also serve as a DirectAccess gateway, a deployment scenario for which the UAG provides incredible value.

Fundamentally, TMG is a network-centric access control solution. With it you can provide fine-grained control over all types of communication going through the firewall, both web-based and non web-based protocols. TMG controls access inbound and outbound, and allows for the configuration of multiple perimeter (DMZ) networks.

By contrast, UAG is an application-centric remote access solution. It provides inbound access only; there are no outbound access capabilities provided by UAG. This is a common source of confusion, as UAG includes TMG under the hood. Many administrators mistakenly believe they can leverage the underlying TMG installation to provide forward proxy or VPN services. This is not supported. Other than mail server publishing, TMG may not be used for any other purpose. It is installed to provide protection for the UAG application only.

UAG takes one of the TMG deployment roles, the VPN/remote access role, and supercharges it. UAG includes advanced application publishing capabilities not provided by TMG, such as endpoint configuration and health detection, customizable data manipulation, session clean up, and more. For example, an administrator can allow full access to a published application to any system that has anti-virus software running and up-to-date, has the firewall enabled, and has the latest system updates applied. If the system does not meet these requirements, the administrator can determine if access should be granted with reduced privileges, or perhaps denied access altogether. An administrator might mask specific data sent to a user (such as credit card numbers, social security numbers, etc.) if the user is accessing the published web application from an untrusted device (non-managed workstation, kiosk, etc.). When the user closes their session, all temporarily downloaded files are removed from the workstation, ensuring that no sensitive data is left behind.

So when do you deploy TMG and when do you deploy UAG? If you want to control outbound web access (forward proxy or firewall), TMG is your only option. If you want to publish multiple applications with a single URL (an application portal), UAG is the answer. There are, however, areas where there is overlap between TMG and UAG capabilities. For example, let’s say you want to publish a single application such as Outlook Web App (OWA). Which solution do you choose? TMG can publish OWA quite capably, as can UAG. The answer depends on your specific requirements. If you need to restrict access to only those systems that meet your specific configuration requirements, publishing OWA with UAG is the solution. If you wish to grant access to OWA to anyone who authenticates successfully, then TMG will suffice.

Licensing often plays a role in determining which solution to deploy for remote access. UAG is licensed using Client Access Licenses, or CALs. Each user of the system is required to have a UAG CAL. The UAG CAL is included in the Microsoft Enterprise CAL (eCAL), so this may not be an issue for larger enterprises. TMG is licensed per processor. There are no CALs required for users of TMG (advanced web protection features do require the Web Protection Services Subscription license, however, which is licensed per user or per device annually). For more information, refer to the licensing FAQs for TMG and UAG.

In summary, TMG is a rock-solid firewall, proxy, content cache, and VPN access gateway that has basic support for application publishing. UAG is an advanced remote access gateway dedicated to application publishing, and is highly customizable and limited in functionality only by your programming skills, creativity, and imagination.

In a nutshell, think of TMG and UAG like this:

TMG – Keeps the bad guys out.
UAG – Lets the good guys in.
